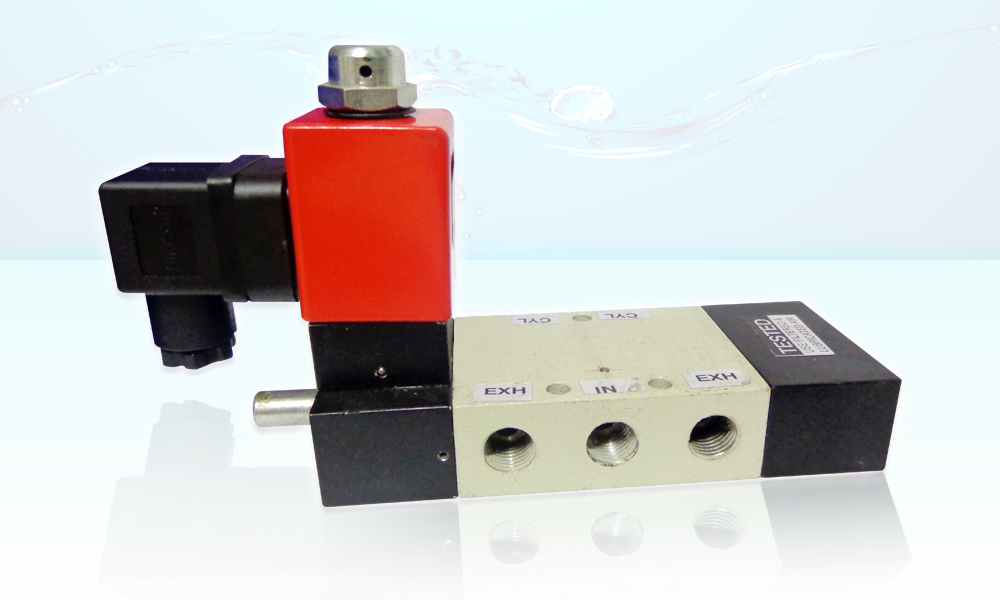

Spool Type Solenoid Valve

ECHPI Pneumatics is manufacturing 3 way and 4 way Spool Type of solenoid Valves. And pneumatic solenoid valve is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device. It is also the interface between electronic controllers and pneumatic systems.

Type	3 way and 4 way Spool Type solenoid Valves.
Manufacturing Range Sizes	1/8” BSP / ¼” BSP/ ½” BSP
Orifice	5mm for 1/8” BSP,6.5mm For ¼” BSP And 12.5 for ½” BSP
Pressure	2.5 to 10 Kg/cm2
Media	Air – Filtered and Lubricated
Body	Powder Coated Aluminium Body Brass & stainless steel Against Specific Orders
Manual Overdrive	Optional
Data	Epoxy Mounded, Water Proof, Continuous Duty Coils, 6 to 230 V AC, 12 V DC to 24 V DC & 9.5 Watts.

Spool Type Solenoid Valve
