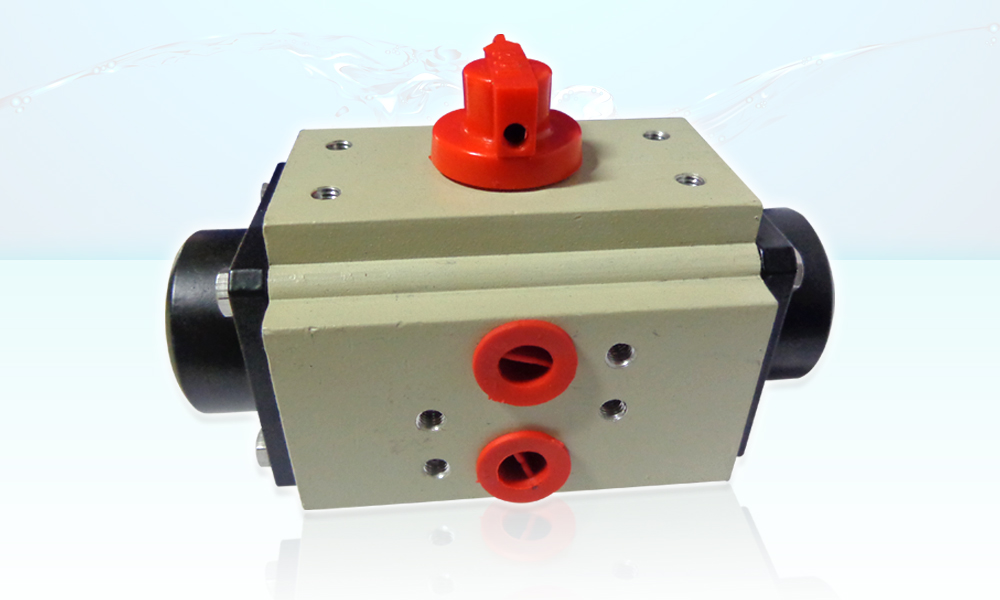

Pneumatics Rotary Actuator is used for Butterfly Valve, Ball Valve, Plug Valve, Dampers Etc. Rotary actuators are used on valves having rotating shafts. This product is using commonly pneumatic operated automation equipments.

Type	Pneumatics Rotary Actuator is used for Butterfly Valve, Ball Valve, Plug Valve, Dampers Etc.
Design	Centre port Compact Design With Aluminium confirming. Powerful & Compactable Piston Harden Pinion. No Metal To Metal Contact, Namur Mounting.
Size for D/A	D0501 / D0502 / D0503 / D0504 / D0505
Size for S/A	S0501 / S0502 / S0503 / S0504 / S0505
Operation	0 to 90@ (Degree) Rotary Motion
Working Pressure	80 P.S.I
Operating pressure	3 to 10 Kg
Material	Aluminum anodized / Powder Coated
Media	Air

Available in Double Acting and Single Acting Spring Return.
Torque output ranging from :3 Nm To 220 Nm
Trouble Free for more than one million cycles operation
Rotation 0 to 90(Degree) Rotary Motion
Working Pressure 80 P.S.I
Operating Pressure 3 to 10 Kg
Zero play actuators
