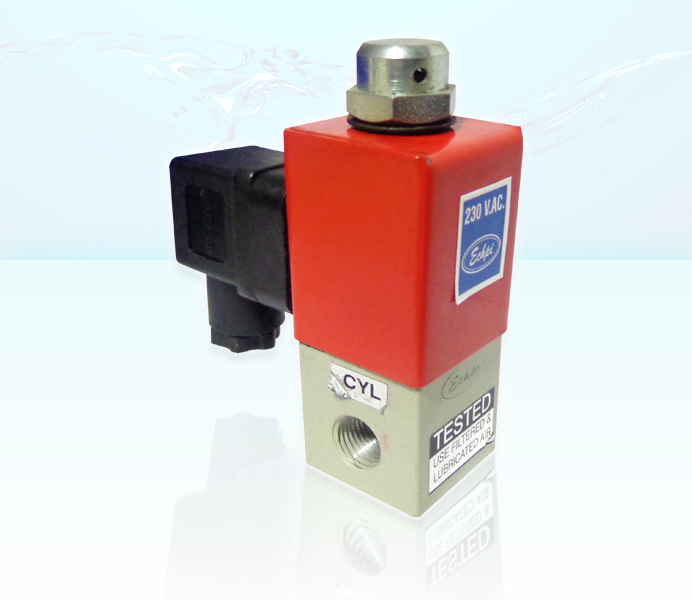

Direct Acting Solenoid Valve

ECHPI pneumatics is manufacturing Direct Acting Solenoid Valves such as 2 Port and 3 Port and it’s operation is either normally Closed nor Normally Opened.

A pneumatic solenoid valve is a switch for routing air to any pneumatic device, usually an actuator, allowing a relatively small signal to control a large device.

It is also the interface between electronic controllers and pneumatic systems.

Type Direct Acting Solenoid Valves
2 Port and 3 Port Normally Closed/Normally Open.
Manufacturing Range Sizes 1/8” BSP / ¼” BSP/ ½” BSP
Orifice 1.5mm Standard (Other sizes on request.)
Pressure 0 to 12 Kg/cm2
Media Air, Water & Non Corrosive Liquids & Gases
Body Hard Anodized Aluminium Body, Brass & stainless steel Against Specific Orders
Manual Overdrive Optional
Data Epoxy Molded, Water Proof, Continuous Duty Coils, 6 to 230 V AC, 12 V DC to 24 V DC & 9.5 Watts.
