Pneumatic Control Valves
ECHPI Pneumatics make two type Pneumatic Control Valves

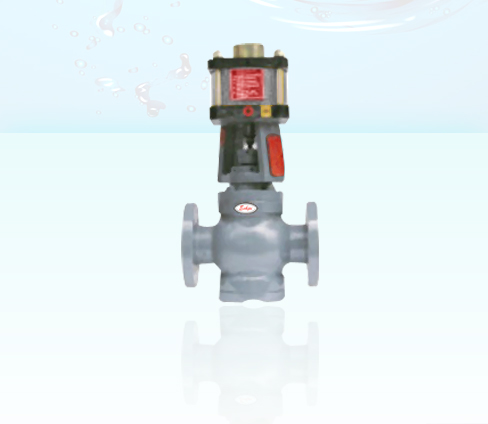

Pneumatic Two Way Control Valve:
Pneumatics two way control valve consist of two ports connected with a passage that will be opened or closed to control flow through the valve.
Normally, an electrically activated solenoid shifts the valve spool or poppet to direct flow. The valve gives an easy on-off function, which many systems use to interlock, isolate, and connect different system parts.

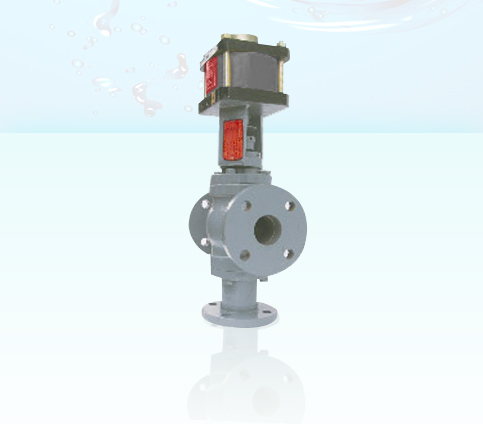

Pneumatic Three Way Control Valve:
Pneumatics Three-way, valves consist of three ports connected through passages within a valve body.
The valves pressurize and exhaust one outlet port to control a single-acting cylinder, or pilot to another valve.
| Type | 1) Pneumatic TWO way Control Valve 2) Pneumatic THREE way Control Valve |
| Ends | Flanged ends Full Bore. |
| Manufacturing Range Sizes | ¾” NB (20mm) To 2½” NB (65mm) |
| M. O .C. | Cast Iron grade No.24 With SS Working part. PTFE Seated |
| Media | Steam/ Air/Fluid Oil |
| Working Pressure | 16 Bar |
| Operating pressure | 3 to 10 Bar |
| Working Temp | 1) 150 Deg. 2) 250 Deg. |
